ADC library

Askia Design Controls available by default in our library

In this article

    PDF Export



    • To access the live survey, click on the image above.
    • To download the version 7.0 QEX file (in example directory), click here.
    • To download the version 5.5.3 QEX file (in example directory). click here.
    • Version of the ADC: 1.0.0
    • This ADC is compatible with 5.5.3 and 7.0+ CCA and Webprod versions

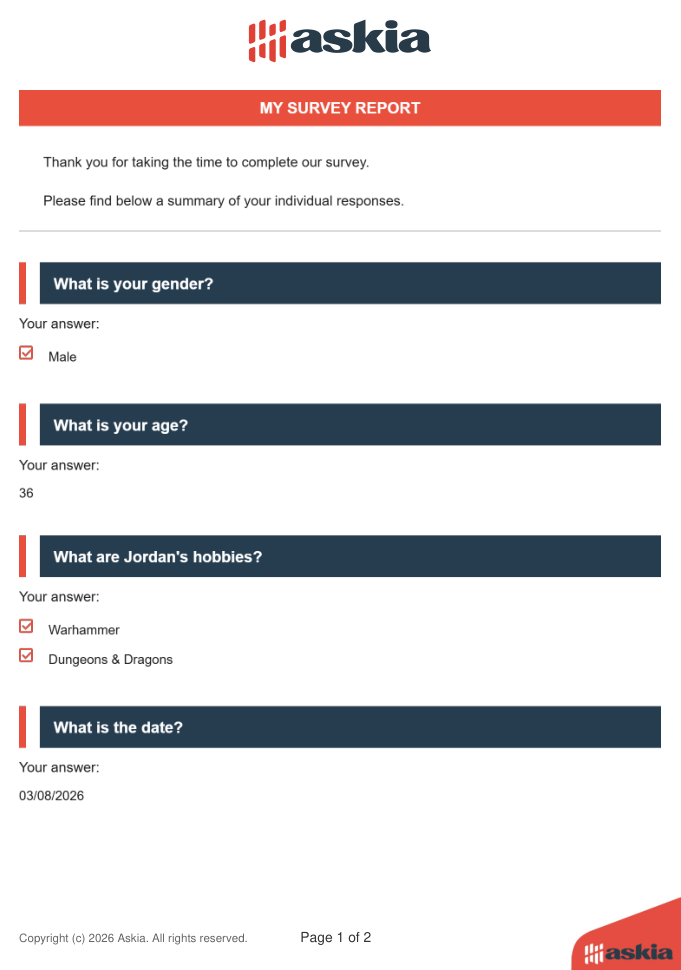

    This ADC allows respondents to export their survey questions in a formatted and stylized PDF file.

    This control must be placed on a Chapter for the export option to appear.




    Parameters Type Comments and/or possible value
       General
    Margin Top number
    Margin Right number
    Margin Bottom number
    Margin Left number
     Filter questions by tag   string Description : filter questions to export based on the Tag option in Questionnaire mode
    Only export selected responses boolean Value: Yes/No
    Description : Only the selected response from a question list will be exported. Else, all responses will be shown
    Only export answered questions boolean Value: Yes/No
    Description : Only the selected response from a question list will be exported. Else, all responses will be shown
    Page number position string Value: bottom-right, bottom-center, bottom-left, top-right, top-center, top-left
       Templates
    PDF filename string Description : Dictate the name of the downloaded file. This option accepts AskiaScript.
    Pages before string Description : Select a PDF file to show before exported responses
    Pages after string Description : Select a PDF file to show after exported responses
      Page background  string Description : Select a PDF file for the export's background appearance
      Intro/Outro Text
    Export title string Description : Enter the title of the export
    Intro Line 1 string Description : Enter a line of text to appear before the exported answers
    Intro line 2 string Description : Enter a line of text to appear before the exported answers
    Closing like 1 string Description : Enter a line of text to appear after the exported answers
    Closing line 2 string Description : Enter a line of text to appear after the exported answers
    Show copyright boolean Value: Yes/No
    Copyright line string Description : Enter a line of text to appear if Show copyright is set to 'Yes'
    Copyright position string Value: bottom-right, bottom-center, bottom-left, top-right, top-center, top-left
