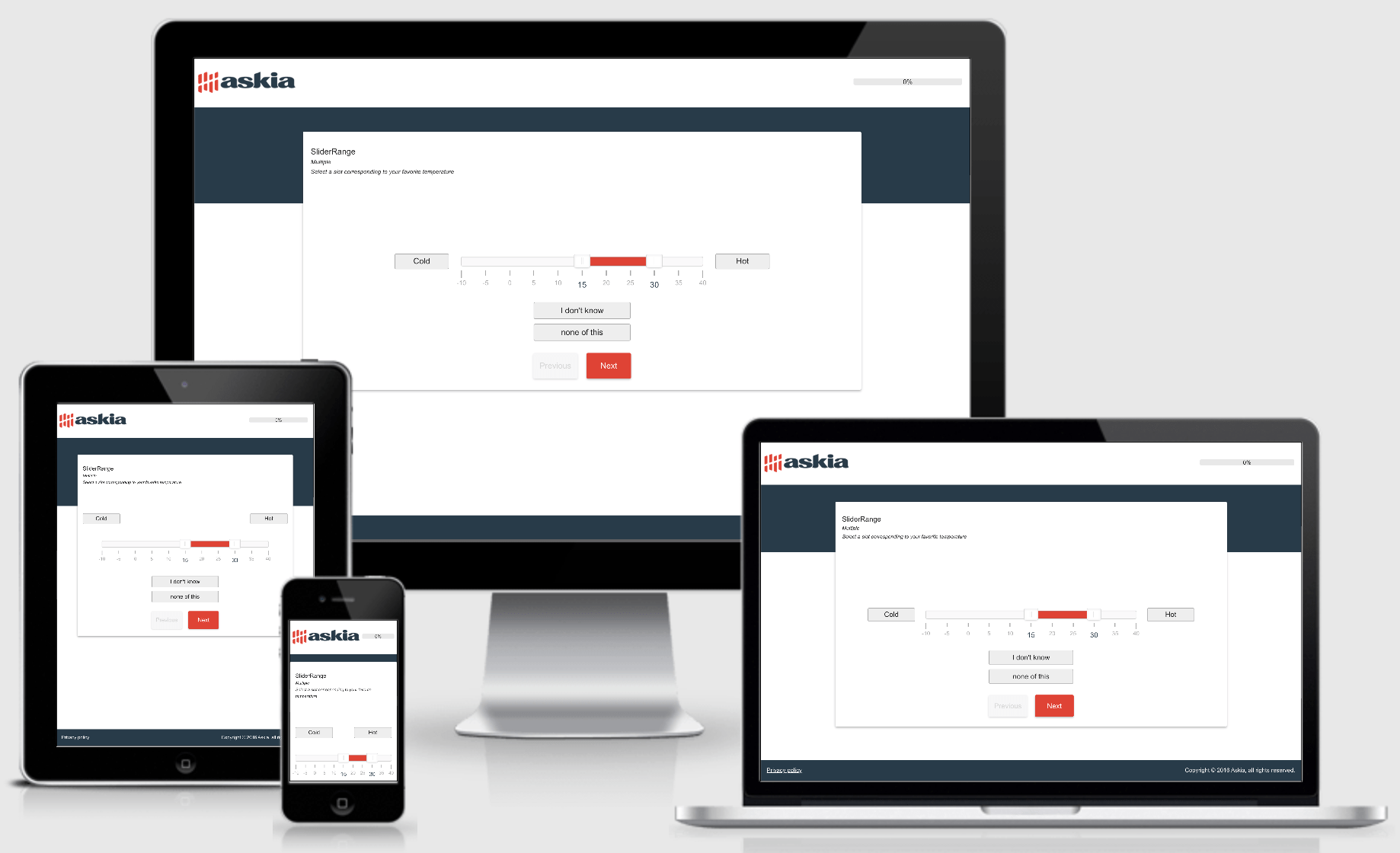

Slider Range
- To download the QEX file (inside the example directory), click here.
- Version of the ADC: 2.0.3.
This control is compatible with multiple, numeric questions. Number minimum of responses: *. Number maximum of responses: *. You can use the following controls : responseblock.
| Parameters | Type | Comments and/or possible value |
| Slider Configuration | ||
|---|---|---|
| Start Value | string | Description : The first value of the slider Value : 33 Options : 0%, 25%, 33%, 50%, 66%, 75% |
| End Value | string | Description : The last value of the slider Value : 66 Options : 25%, 33%, 50%, 66%, 75%, 100% |
| Margin Value | number | Description : Value of the minimum distance of the two handles Value : 0 |
| Tooltip | Boolean | Description : Display or no tooltips Value : false |
| Orientation | string | Description : Orientation of the slider Value : horizontal Options : horizontal, vertical |
| Direction | string | Description : Direction of the slider Value : ltr Options : Left to Right, Right to Left |
| Height | string | Description : Height of the slider Value : 20px |
| Width | string | Description : Width of the slider Value : 500px |
| Slider Max Width | string | Description : The max Width of the slider Value : 100% |
| Slider Color | colour | Description : The colour of the slider when not focus Value : 250,250,250 |
| Selected Slider Color | colour | Description : The colour of the slider when focus Value : 0,124,196 |
| For Numeric | ||
| Step | number | Description : The step between two value Value : 1 |
| Scale And Label Configuration | ||
| Display scale | string | Description : Display the scale Value : block Options : yes, no |
| Scale max width | string | Description : Scale disappears when the browser's size is inf or equal to the value Value : 240px |
| Scale Density | number | Description : Density of the scale Value : 1 |
| Scale Values Font Size | string | Description : Pips font size in scale Value : 10px |
| Scale Values Color | colour | Description : Scale Values Colour Value : 153,153,153 ColorFormat : rgb |
| Scale Color | colour | Description : Colour of the scale Value : 153,153,153 ColorFormat : rgb |
| Selected Scale Values Font Size | string | Description : Selected Scale Values Fond Size Value : 16px |
| Selected Scale Values Color | colour | Description : Selected Scale Values Colour Value : 153,153,153 ColorFormat : rgb |
| Right Label | string | Description : A label display at the right of the slider (in horizontal position) or at the bottom (in vertical position) Value : Right side |
| Left Label | string | Description : A label display at the left of the slider (in horizontal position) or at the top (in vertical position) Value : Left side |
| Labels Font Size | string | Description : The font size of labels Value : 20px |
| Label Alignment | string | Description : Alignment of the two labels Value : side Options : Side, Top, Bottom |
| Label Color | colour | Description : Colour of the two labels Value : 68,68,68 ColorFormat : rgb |
| Label Background Color | colour | Description : Color of the two labels Value : 250,250,250 ColorFormat : rgb |
| Top Label Array | string | Description : All labels which will be display on the top of the slider |
| Top Label Position | string | Description : Position of the different labels |
| Labels Border Style | string | Description : The style of the border Value : solid Options : None, Solid, Dashed, Dotted, Double |
| Labels Border Thickness | string | Description : The thickness of the border around the labels responses Value : 1px Options : None, 1px, 2px, 3px, 4px, 5px |
| Labels Border Color | colour | Description : The colour of the border Value : 68,68,68 ColorFormat : rgb |
| Labels Max Width | string | Description : The max width of labels Value : 200px |
| Labels Padding | string | Description : Padding of the different labels Value : 5px |
| Responsive Side Width | number | Description : number of pixel when side alignment become top Value : 300 |
| Exclusives Responses | ||
| Exclusive Width | string | Description : max width of exclusives buttons Value : 200px |
| Exclusive Alignment | string |
Description : Position of the exclusives responses |
| Exclusive Font Size | string | Description : Font size of exclusives responses Value : 16px |
| Exclusive Font Color | colour | Description : Font colour of exclusives button Value : 68,68,68 ColorFormat : rgb |
| Exclusive Background Color | colour | Description : The colour of the background Value : 232,232,232 ColorFormat : rgb |
| Exclusive Border Style | string | Description : The style of the border Value : solid Options : None, Solid, Dashed, Dotted, Double |
| Exclusive Border Thickness | string | Description : The thickness of the border around the exclusives responses Value : 1px Options : None, 1px, 2px, 3px, 4px, 5px |
| Exclusive Border Color | colour | Description : The colour of the border Value : 68,68,68 ColorFormat : rgb |
| Hover Exclusive Font Color | colour | Description : Font colour of exclusives responses on hover Value : 68,68,68 ColorFormat : rgb |
| Hover Exclusive Background Color | colour | Description : Colour of the background on hover Value : 243,243,243 ColorFormat : rgb |
| Hover Exclusive Border Style | string | Description : Border style on hover Value : solid Options : None, Solid, Dashed, Dotted, Double |
| Hover Exclusive Border Thickness | string | Description : The thickness of the border around the exclusives responses on hover Value : 1px Options : None, 1px, 2px, 3px, 4px, 5px |
| Hover Exclusive Border Color | colour | Description : The colour of the border Value : 68,68,68 ColorFormat : rgb |
| Selected Exclusive Font Color | colour | Description : Font colour of exclusives responses when selected Value : 255,255,255 ColorFormat : rgb |
| Selected Exclusive Background Color | colour | Description : Colour of the background when selected Value : 0,157,251 ColorFormat : rgb |
| Selected Exclusive Border Style | string | Description : Border style when selected Value : solid Options : None, Solid, Dashed, Dotted, Double |
| Selected Exclusives Border Thickness | string | Description : The thickness of the border around the exclusives responses when selected Value : 1px Options : None, 1px, 2px, 3px, 4px, 5px |
| Selected Exclusive Border Color | colour | Description : The colour of the border Value : 255,255,255 ColorFormat : rgb |
| Format Configuration | ||
| Decimal Number | number | Description : The number of decimal in slider values Value : 0 |
| Decimal Separator | string | Description : The string or char used to separate real part and decimal part on a number |
| Thousand Separator | string | Description : The string or char used to separate thousands part Value : |
| Prefix | string | Description : The prefix of all values in the slider |
| Postfix | string | Description : The postfix of all values in the slider |
| Negatives Mark | string | Description : The string or char used to show the number is under 0 Value : - |
