Gender

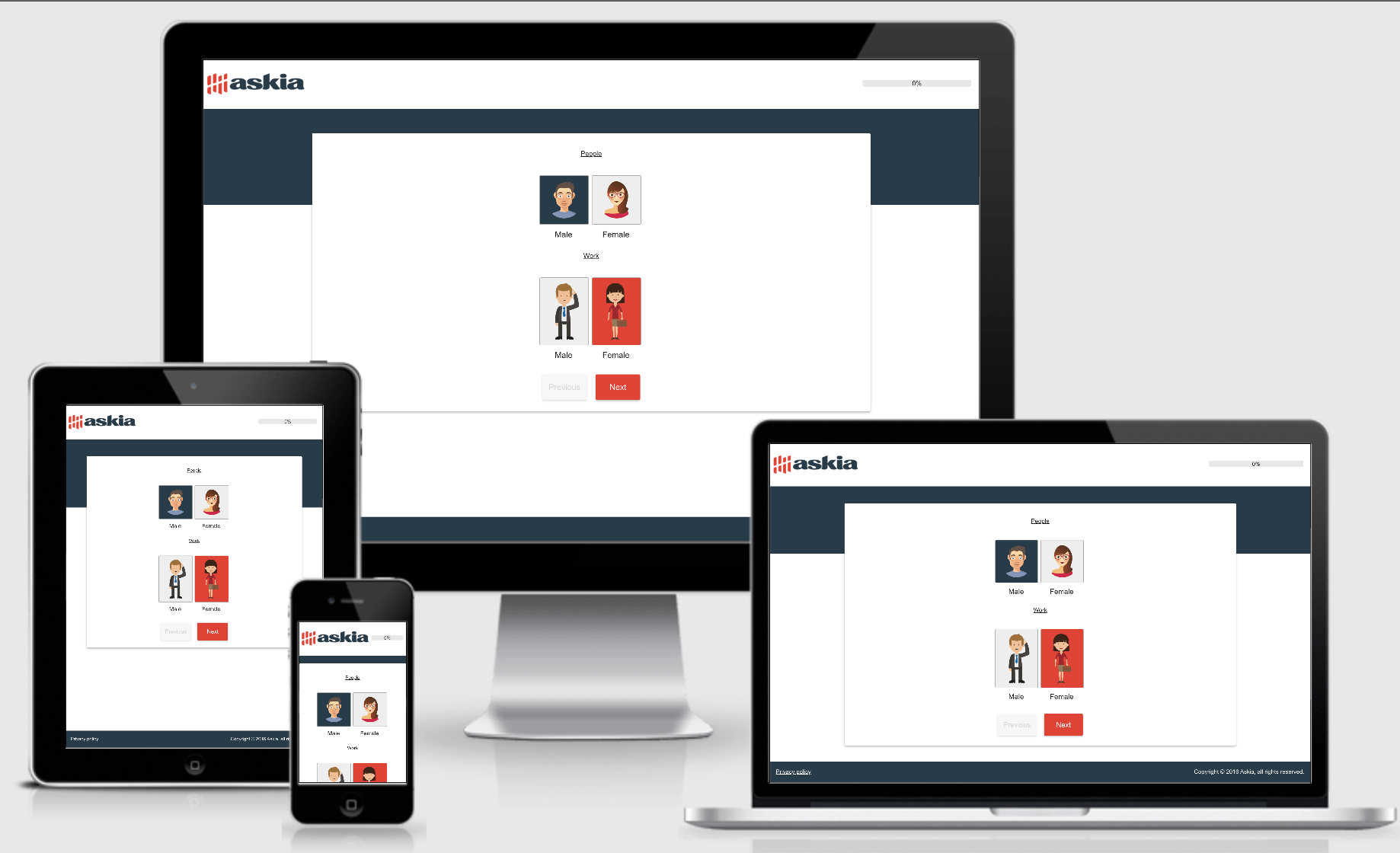

- To access to the live survey, click on the picture above.
- To download the QEX file (inside example directory), click here.
- Version of the ADC: 2.0.3.
This control is compatible with a single question (response block).
Notes
- The parameter "Style of the images" let you choose between 10 predefines set of pictures.
- If you want to use your own pictures then select “Use resources URL” and apply in design mode in the resource column the desired pictures (in the adc2-gender.qex example, it’s the third screen).
- Some parameters can have different rendering depending of the browser used.
- The Border Radius will not be rendered for IE8 and lower version of Internet Explorer.
- The Drop Shadow will not be rendered for IE9 and lower version of Internet Explorer.
| Parameters | Type | Comments and/or possible value |
| General | ||
| Style of the images | Boolean | 'Body Dark, Body Light, Face Dark, Face Light, Icon Dark, Icon Light, Avatar Black, Avatar People, Avatar Work, Avatar Young, Use Resouces URL |
| Font Size | Number | In Pixels |
| Response Font Colour | Colour | |
| Control Width | Number | In Percentage |
| Control Max Width | Number | In Pixels |
| Response Max Width | Number | In Pixels |
| Response Margin | String | In Pixels |
| Control Alignment | Boolean | 'Left, Center, Right' |
| Text Alignment | Boolean | 'Left, Center, Right' |
| Border Radius | Number | '0, 2, 5, 10, 15, 20, 25, 30' |
| Display Response Text | Boolean | 'No, Yes' |
| Response Text Padding | String | In Pixels |
| Auto Forward | Boolean | 'No, Yes' |
| First Response | ||
| Response1 Colour Primary | Colour | |
| Response1 Colour Secondary | Colour | |
| Response1 Border Colour | Colour | |
| Response1 Border Thickness | Number | In Pixels |
| Response1 Border Style | Boolean | 'None, Solid, Dashed, Dotted, Double' |
| Response1 Drop Shadow | Boolean | 'On, Off' |
| Show Response1 Hover Colour | Boolean | 'Yes, No' |
| Response1 Hover Colour Primary | Colour | |
| Response1 Hover Colour Secondary | Colour | |
| Show Response1 Hover Border | Boolean | 'Yes, No' |
| Response1 Hover Border Colour | Colour | |
| Response1 Hover Border Thickness | Number | In Pixels |
| Response1 Hover Border Style | Boolean | 'None, Solid, Dashed, Dotted, Double' |
| Response1 Hover Drop Shadow | Boolean | 'On, Off' |
| Response1 Selected Colour Primary | Colour | |
| Response1 Selected Colour Secondary | Colour | |
| Response1 Selected Border Colour | Colour | |
| Response1 Selected Border Thickness | Number | In Pixels |
| Response1 Selected Border Style | Boolean | 'None, Solid, Dashed, Dotted, Double' |
| Response1 Selected Drop Shadow | Boolean | 'On, Off' |
| Second Response | ||
| Response2 Colour Primary | Colour | |
| Response2 Colour Secondary | Colour | |
| Response2 Border Colour | Colour | |
| Response2 Border Thickness | Number | In Pixels |
| Response2 Border Style | Boolean | 'None, Solid, Dashed, Dotted, Double' |
| Response2 Drop Shadow | Boolean | 'On, Off' |
| Show Response2 Hover Colour | Boolean | 'Yes, No' |
| Response2 Hover Colour Primary | Colour | |
| Response2 Hover Colour Secondary | Colour | |
| Show Response2 Hover Border | Boolean | 'Yes, No' |
| Response2 Hover Border Colour | Colour | |
| Response2 Hover Border Thickness | Number | In Pixels |
| Response2 Hover Border Style | Boolean | 'None, Solid, Dashed, Dotted, Double' |
| Response2 Hover Drop Shadow | Boolean | 'On, Off' |
| Response2 Selected Colour Primary | Colour | |
| Response2 Selected Colour Secondary | Colour | |
| Response2 Slected Border Colour | Colour | |
| Response2 Selected Border Thickness | Number | In Pixels |
| Response2 Selected Border Style | Boolean | 'None, Solid, Dashed, Dotted, Double' |
| Response2 Selected Drop Shadow | Boolean | 'On, Off' |
