Drag and Drop

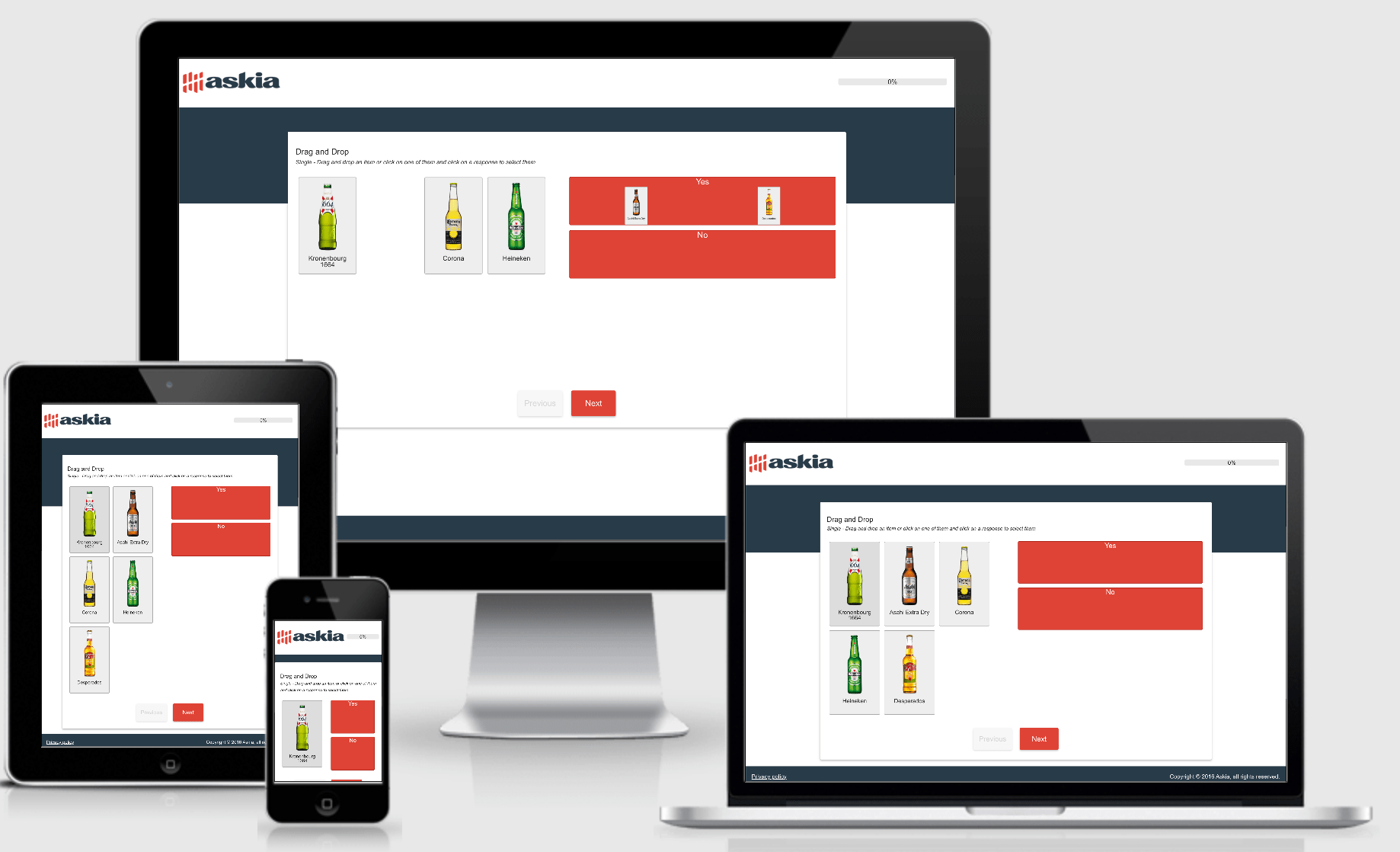

- To access to the live survey, click on the picture above.
- To download the QEX file (inside the example directory), click here.
- Version of the ADC: 2.0.3.
This ADC allows a respondent to drag categories (brands, products, etc.) and drop them into response areas. There are many parameters below to manage this useful and engaging control.
This control is compatible with a single loop question (Grid response block).
| Parameters | Type | Comments and/or possible value |
|
General |
||
| Stack Responses | Boolean | |
| Automatic Stacking Width | String | |
| Automatically Select Next Response | Boolean | |
| Exclusive Areas | String | |
| Font Size | Number | In pixels |
| Control Width | Number | In percentage |
| Max Width | Number | In percentage |
| Control Alignment | Left, Center, Right' | |
| Animation Speed | Very Fast, Fast, Medium, Slow' | |
|
Alignment |
||
| Response Text Alignment | Left, Center, Right' | |
| Response Image Alignment | Left, Center, Right' | |
| Response Alignment | Left, Center, Right' | |
|
Response Layout |
||
| Response Text Position | Top, Left, Bottom, Right' | |
|
Responses Styling |
||
| Response Width | String | |
| Response Height | String | |
| Response Margin | Number | In pixels |
| Response Padding | Number | In pixels |
| Response Text Padding | Number | In pixels |
| Response Image Padding | Number | In pixels |
| Response Text Line Height | Number | In percentage |
| Display Response Text | Boolean | |
| Response Colour Primary | Colour | |
| Response Colour Secondary | Colour | |
| Response Font Colour | Colour | |
| Response Border Colour | Colour | |
| Border Radius | Number | |
| Response Border Thickness | Number | In pixels |
| Response Border Style | None, Solid, Dashed, Dotted, Double' | |
| Response Drop Shadow | Boolean | |
| Show Response Hover Colour | Boolean | |
| Response Hover Colour Primary | Colour | |
| Response Hover Colour Secondary | Colour | |
| Show Response Hover Font Colour | Colour | |
| Response Hover Font Colour | Colour | |
| Show Response Hover Border | Boolean | |
| Response Hover Border Colour | Colour | |
| Response Hover Border Thickness | Number | In pixels |
| Response Hover Border Style | None, Solid, Dashed, Dotted, Double' | |
| Response Hover Drop Shadow | Boolean | |
| Selected Response Colour Primary | Colour | |
| Selected Response Colour Secondary | Colour | |
| Selected Response Font Colour | Colour | |
| Selected Response Border Colour | Colour | |
| Selected Response Border Thickness | Number | In pixels |
| Selected Response Border Style | None, Solid, Dashed, Dotted, Double' | |
| Selected Response Drop Shadow | Boolean | |
|
Drop Area |
||
| Drop Area Position | Right, Left, Top, Bottom' | |
| Drop Area Container Width | Number | In pixels |
| Drop Area Width | Number | In pixels |
| Drop Area Height | Number | In pixels |
| Drop Area Alignment | Left, Right, Center' | |
| Drop Area Font Size | Number | In pixels |
| Drop Area Font Colour | Colour | |
| Drop Area Text Alignment | Right, Left, Top, Bottom' | |
| Drop Area Colour Primary | Colour | |
| Drop Area Colour Secondary | Colour | |
| Drop Area Border Colour | Colour | |
| Drop Area Border Thickness | Number | In pixels |
| Drop Area Border Style | None, Solid, Dashed, Dotted, Double' | |
| Drop Area Border Radius | Number | |
| Drop Area Drop Shadow | Boolean | |
| Drop Area Padding | Number | In pixels |
| Drop Area Margin | Number | In pixels |
| Drop Area Text Padding | String | |
|
Images |
||
| Force Image to Fit | Boolean | |
| Max Image Width | Number | In pixels |
| Max Image Height | Number | In pixels |
| Force Image Size | Force width, force height, force both' | |
|
Start Area |
||
| Start Area Width | Number | In percentage |
| Start Area Colour Primary | Colour | |
| Start Area Colour Secondary | Colour | |
| Start Area Border Colour | Colour | |
| Start Area Border Thickness | Number | In pixels |
| Start Area Border Style | None, Solid, Dashed, Dotted, Double' | |
| Start Area Border Radius | Number | |
| Start Area Drop Shadow | Boolean | |
|
Fallback |
||
| Orientation | Boolean | Horizontal, Vertical' |
| Image Width | Number | |
